1.該機床適合加工開關復雜的回轉類零件，能進行柱面、曲面、錐面、階梯面、螺旋等的車、銑加工。本產品廣泛應用于汽車行業、精度模具、精密工具和儀表、軍工、航天航空等行業的零件加工。

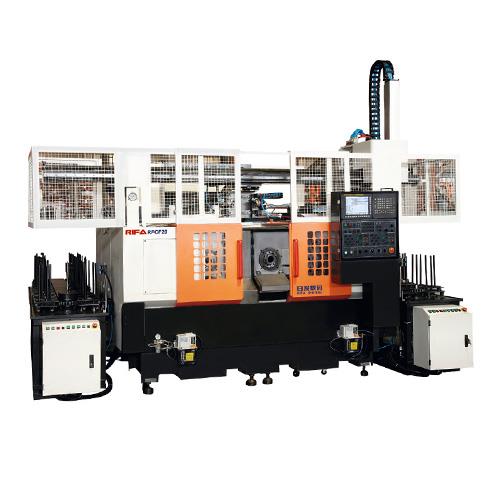

2.設備配置左右平行布置的兩個主軸部件及絎架機械手、上下料裝置，所以特別適合需要掉頭加工的回轉零件，可一次性從毛坯加工成成品。
3.主軸FANUC電主軸結構，可實現任意分度。主軸軸承采用NSK高檔主軸軸承，主軸帶剎車功能。
4.設備配備12工位或8工位刀具，刀臺具備動力刀具功能并帶Y軸，設備可一次性完成工件的車、銑、鉆孔及攻絲等加工同，設備可廣泛使用于汽車零部件的一次性成型加工。
1. The machine tool adopts the turning milling compound cutting method to turn all kinds of rotary parts such as spheres, valve bodies, discs, hubs and spokes. It mainly completes the machining of inner holes, outer circular end faces, outer circular surfaces and inner and outer circular arc surfaces. The machine tool has a c-axis and can complete the functions of milling curved surfaces, boring, circumferential drilling and reaming, tapping, etc. through the three-axis and three linkage mode; One time clamping can complete rough and fine machining such as turning, milling, drilling, boring and tapping.
The machine tool adopts Siemens or FANUC system, which is displayed in Chinese. It adopts high-power control to control the rotation of the spindle workbench, which can realize stepless speed regulation of milling spindle and positioning. The machine tool can meet the requirements of wet cutting, and can also carry out dry cutting with corresponding cutting tools. The machine tool ram uses a square ring structure with a size equal to 254*254mm; When the worktable is rotated by indexing, there is a clearance elimination structure; Beam lifting and precise positioning grading gear rail, with positioning and clamping mechanism for each section. Turning and milling conversion is controlled by program, which is convenient and reliable with good accuracy retention. The main shaft is equipped with a reliable cooling system to ensure continuous normal operation for 24 hours at the highest speed. The overall layout of the machine tool is reasonable, the shape is beautiful, and the operation and adjustment are convenient. The base of the rotary table of the machine tool is made of high-quality cast iron, which has sufficient strength, rigidity, good shock absorption, high production efficiency, good reliability and perfect protection function. It is not only suitable for single piece small batch production, but also suitable for mass production.
2. Full function, high precision, heavy / strong processing, anti vibration processing requires a huge and stable platform; All components such as the base, column, beam and ram carriage are of high-quality cast iron structure, which is very heavy and densely covered with stiffeners to ensure maximum metal cutting. RIFA-NEWLAND machine tool provides the best structural stiffness, shock absorption, seismic resistance and thermal stability in the industry. As an option, the bed base can be filled with polymer resin to suppress vibration and maintain thermal stability. It can widely meet the needs of bearings, ships, engineering machinery, aerospace, transmission assembly, energy machinery And other industries' demand for high-efficiency processing of medium and large precision parts.
